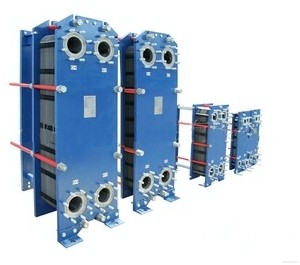

类型：板式冷却器
温度范围：-20~110℃
功率：5000（KW）
用途：电厂发电系统循环水冷却，汽轮机组油冷却
接口通径：DN200
单片换热面积：0.85㎡
最大片数：270
最大流量:600m³/h

Type, AT200H (Type cooler)

Temperature range, - 20 ~ 110 ℃

Power, 5000 (KW)

Purpose, power generation system circulating water cooling, steam turbine unit oil cooling

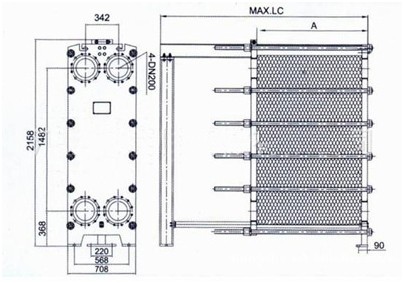

Interface size, DN200

Monolithic heat exchange area, 0.85 ㎡

Maximum number of assembling piece, 270

Maximum flow, 600 m ³ / h
